Nyos Opus G2 250 Slime Line White

Quality. Function. Aesthetics.

With the ® OPUS® series we created ready-to-use reef aquariums that will satisfy the highest demands in terms of quality, functionality and aesthetics. Attention was also paid to important details that make the difference. Due to the special design, the aquarium as such is placed in the background. As a result, nothing distracts from the most important thing: The reef experience.

Key Features Nyos® OPUS®G2

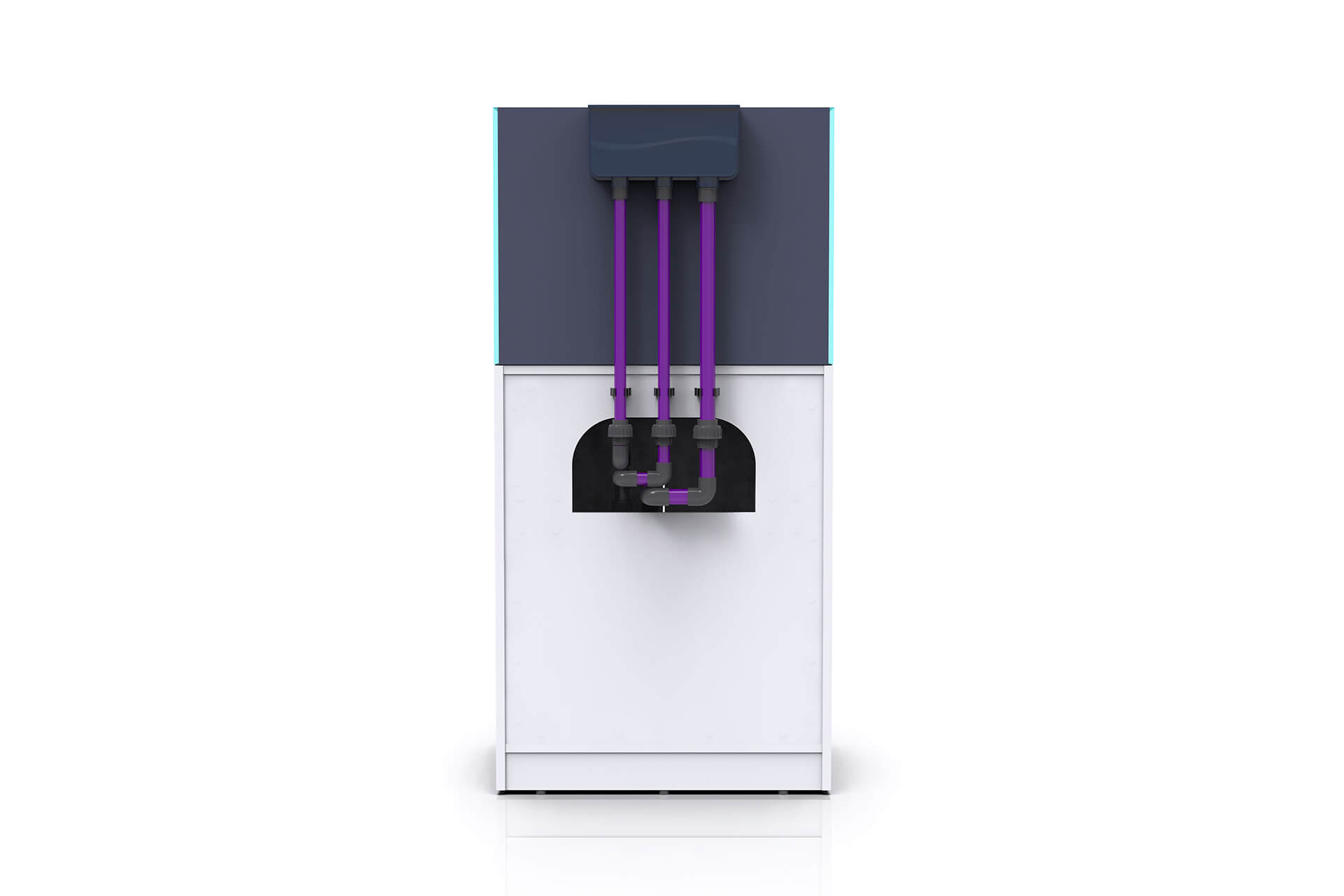

• Hidden overflow: External overflow box embedded in the back pane
• Pool tank with ultra-clear glass and clear edges thanks to transparent silicone
• Deep blue back pane creates a realistic feeling of depth
• With the Slim-Line® and Pro-Line®, you can choose from two cabinet design lines
• High-quality, robust cabinets thanks to the melamine resin coating
• Separate refill tank with extra large capacity
• Large sump with a functional design as well as big skimmer chamber for multiple devices
• Made in the EU with improved sustainability aspects

MINIMALISM PERFECTED

Panes with ultra-clear glass for brilliant colors
The front pane and both side panes are produced from ultra-clear glass. In comparison to conventional glass, ultra-clear glass exhibits a significantly weaker green tint, so that the colors of the fish and corals appear more contrasting and lively.

Pool Tank
The Nyos® OPUS® G2 is designed as a pool tank. There are no annoying side or cross bars in the aquarium.

Clear glass edges
In order to detract as little as possible from the reef experience, only transparent silicone is used in the display tank.

Deep blue lacquered back pane for realistic depth effect
The back pane of the aquarium is finished in a precisely tailored dark shade of blue. When the lighting is switched on, this creates the perfect illusion of a realistic underwater world with depth effect.

Perfect aquascaping dimensions thanks to the extra depth
For reef aquariums, depth is particularly important when it comes to aquascaping. That’s why the Nyos® OPUS® G2 features an extra deep design so you can create spectacular aquascapes.

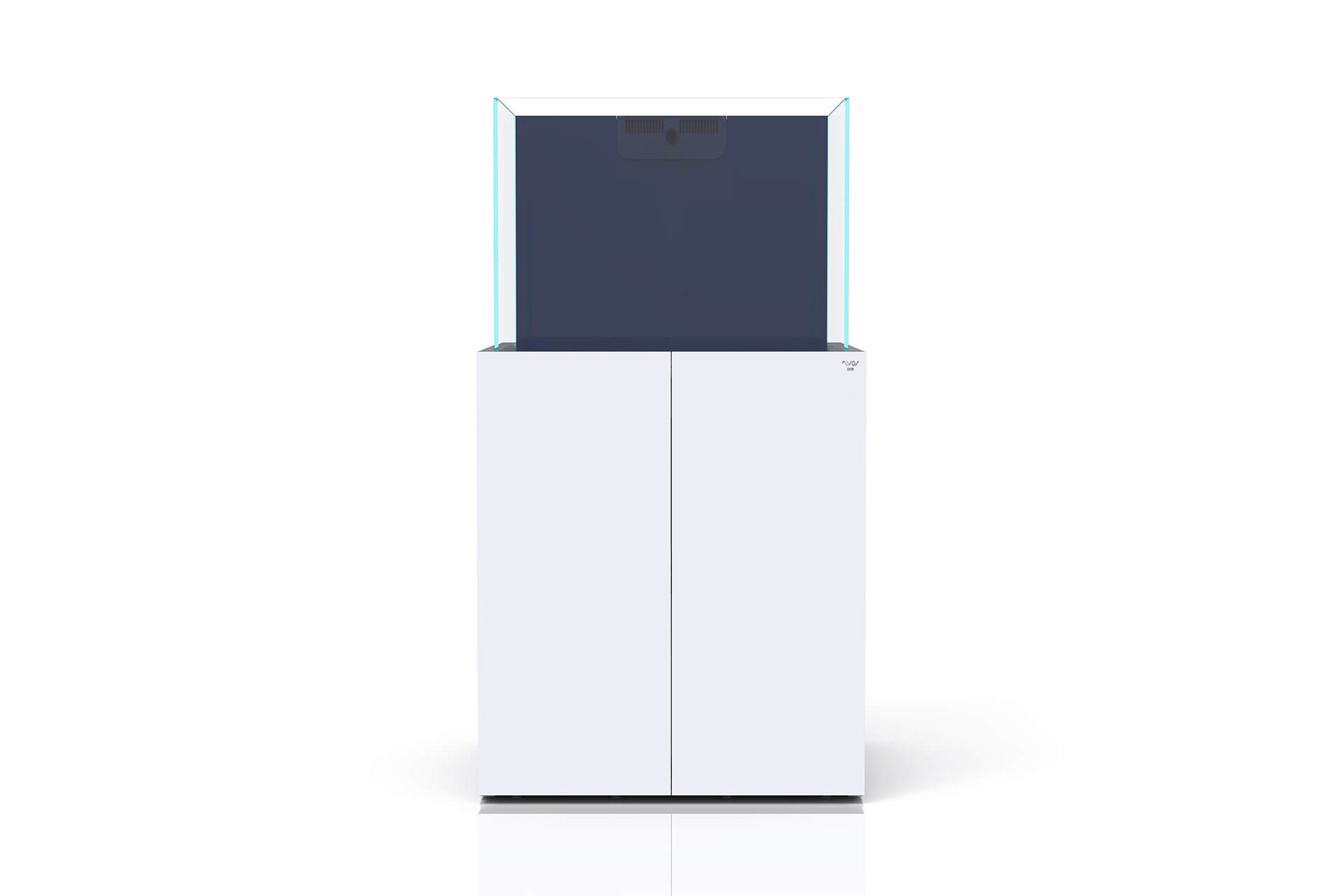

NYOS® OPUS® G2 CABINET

The Nyos® OPUS® G2 is optionally available with ® or Slim-Line® cabinet.

Both cabinet designs are characterized by the following features:

Robust design
Both cabinet designs use moisture-resistant boards in accordance with EN 312. Thanks to a durable melamine resin coating, the surfaces are extremely scratch and impact resistant. Furthermore, the cabinets are equipped with water-proof pads on the inside.

Sustainable and resource-friendly
The wood used in the Nyos® OPUS® G2 cabinets comes from verified legal sources in accordance with ISO 38200 and is produced in FSC® certified factories. The legal limits for formaldehyde emissions are clearly undercut. All cabinets are made of 30% from recycling material and 45% co-products (leftover wood from the sawmill industry). This results in a lower carbon footprint.

Comfortable with greater height
Compared to the first generation, the Nyos® OPUS® G2 cabinets have a greater total height so that working in the cabinet is more convenient. The doors can be conveniently opened with the recessed push-to-open system.

Aesthetics and design
With the Nyos® OPUS® G2 cabinets, we paid special attention to functional and aesthetic design. The surfaces have a melamine resin coating and are timeless elegance and simplicity.

Available in two attractive colors

In addition to timeless white, both cabinet types are also available in modern basalt gray. Both colors are characterized by a matt finish.

SPECIAL FEATURES PRO-LINE® CABINET	SPECIAL FEATURES SLIM-LINE® CABINET
ThePro-Line® cabinet is perfect for all those who love something special:	The Slim-Line® cabinet is entirely dedicated to minimalism:
Extravagant, cubic design Additional storage space for equipment and accessories as the cabinet has a larger footprint than the aquarium High quality® 125° hinges with soft-close Doors and made of solid material with a thickness of 38mm Concealed sand edge: The special design of the Pro-Line® cabinet conceals the bottom silicone seam and the sand edge of the aquarium	Slim design with clear lines Space-saving thanks to the smaller footprint Maximizes minimalism Nyos® OPUS® G2 design at an affordable entry-level price

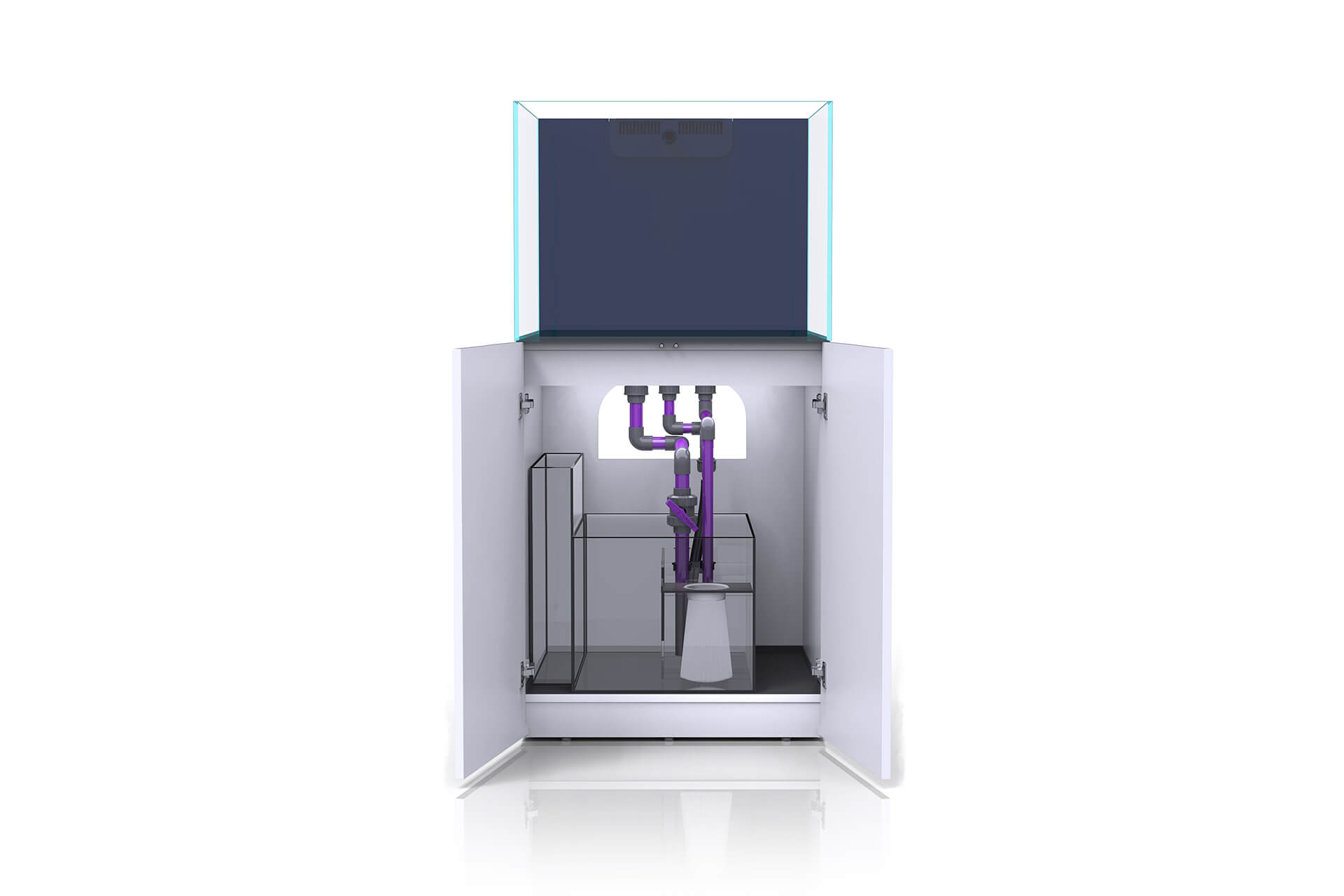

NYOS® OPUS® G2 SUMP

CLEAR & CLEAN

Space-saving PVC piping
Compared to hose installations, PVC piping offers greater safety and durability. The piping can be installed in a few simple steps and is designed to be space-saving.

Simplified sump with large skimmer chamber
Multiple devices such as skimmer, media reactor or algae reactor can be housed at the same time in the large main chamber (skimmer chamber). This chamber has a constant water level of approx. 21 cm (8 in).

Adjustable, quiet main drain and separate emergency drain
The Nyos® OPUS® G2 has a main drain with an adjustable valve. This makes it possible to minimize drain noise. An emergency drain is also included as standard..

Nylon filter sock
The Nyos® OPUS® G2 includes a nylon filter sock. It is designed for longer run times.

Separate, large volume refill tank
The 50cm (20 in) high refill tank with a volume of 22 liters (6 gal) holds RO water for about one week.

Functionality and Structure of Sump

Chamber 1
Sedimentation chamber for the outflow water from the display tank.

Chamber 2
Filter sock filters dirt particles out of the water

Chamber 3
The main filter chamber, also known as the skimmer chamber, has a constant water level. It is possible to install further filters here, such as a media reactor for example.

Chamber 4
Bubble trap, in which a coarse filter sponge can be placed if necessary.

Chamber 5
Return Chamber. In this chamber, the water is fed back into the display tank via the return pump. As the water level in the return chamber varies, this is where the evaporated water needs to be replenished via the auto top off system.

TECHNICAL DATA

AQUARIUM (OPUS® G2 Tank)Nyos® OPUS® G2 200 Nyos® OPUS® G2 250

OPUS® G2 Tank	Nyos® OPUS® G2 200	Nyos® OPUS® G2 250
Aquarium dimensions (L x W x H)	55 x 55 x 53 cm (21.7 x 21.7 x 20.9 in)	70 x 55 x 53 cm (27.6 x 21.7 x 20.9 in)
Display Tank gross volume	262 l (69 gal)	204 l (53.9 gal)
Ultra-clear glass	Front pane and side panes on the left and right	Front pane and side panes on the left and right
Glass thickness	10 mm (0.4 in)	10 mm (0.4 in)
Hidden-overflow (no overflow box in the aquarium)	Yes	Yes

OPUS® G2 Cabinet	SLIM-LINE®	PRO-LINE®	SLIM-LINE®	PRO-LINE®
Cabinet dimensions (L x W x H)	55 x 55 x 90 cm (21.7 x 21.7 x 35.4 in)	63,5 x 65,5 x 90 cm (25 x 25.8 x 35.4 in)	70 x 55 x 90 cm (27.6 x 21.7 x 35.4 in)	78,5 x 65,5 x 90 cm (30.9 x 25.8 x 35.4 in)
Colors available	White or basalt grey	White or basalt grey	White or basalt grey	White or basalt grey
Total height of aquarium with cabinet	145 cm (4 ft 9 in)	143 cm (4 ft 8 in)	143 cm (4 ft 8 in)	141 cm (4 ft 7 in)
Height-adjustable feet	No	Yes	No	Yes
Sand edge and front silicone seal concealed	No	Yes	No	Yes
Hinges	Standard	Premium 125° with soft-close	Standard	Premium 125° with soft-close
Moisture-resistant wood boards in accordance with EN 312	Yes	Yes	Yes	Yes



OPUS® G2 Sump
Sump dimension (L x W x H)	33 x 49,5 x 35 cm (13 x 20 x 13.8 in)	40 x 49,5 x 35 cm (15.8 x 20 x 13.8 in)
Sump water level	approx. 21cm (8 in)	approx. 21cm (8 in)
Sump volume (gross) at a water level of 21cm (8 in)	35 liters (9.3 gal)	42 liters (11.1 gal)
Refill tank dimensions (L x W x H) and volume (net)	9 x 42 x 50 cm, 16 liters (3.5 x 16.5 x 20 in, 4.2 gal)	11 x 42 x 50 cm, 20 liters (4.3 x 16.5 x 20 in, 5.3 gal)
Footprint skimmer chamber (L x W)	20 x 49,5 cm (7.9 x 20 in)	24 x 49,5 cm (9.5 x 20 in)
Footprint return chamber (L x W)	12 x 22 cm (4.7 x 8.7 in)	15 x 22 cm (5.9 x 8.7 in)

OTHER
Emergency drain	Yes	Yes
Recommended flow return pump	2.000 l/h (525 gph)	2.000 l/h (525 gph)
Adjustable valve on main drain	Yes	Yes

AQUARIUM (OPUS® G2 Tank)Nyos® OPUS® G2 300 Nyos® OPUS® G2 440

OPUS® G2 Tank	Nyos® OPUS® G2 300	Nyos® OPUS® G2 440
Aquarium dimensions (L x W x H)	90 x 55 x 53 cm (35.4 x 21.7 x 20.9 in)	125 x 55 x 55 cm (35.4 x 21.7 x 20.9 in)
Display Tank gross volume	262 l (69 gal)	378 l (100 gal)
Ultra-clear glass	Front pane and side panes on the left and right	Front pane and side panes on the left and right
Glass thickness	10 mm (0.4 in)	12 mm (0.47 in)
Hidden-overflow (no overflow box in the aquarium)	Yes	Yes

OPUS® G2 Cabinet	SLIM-LINE®	PRO-LINE®	SLIM-LINE®	PRO-LINE®
Cabinet dimensions (L x W x H)	90 x 55 x 90 cm (35.4 x 21.7 x 35.4 in)	98,5 x 65,5 x 90 cm (38.8 x 25.8 x 35.4 in)	125 x 55 x 90 cm (49.2 x 21.7 x 35.4 in)	133,5 x 65,5 x 90 cm (52.6 x 25.8 x 35.4 in)
Colors available	White or basalt grey	White or basalt grey	White or basalt grey	White or basalt grey
Total height of aquarium with cabinet	143 cm (4 ft 8 in)	141 cm (4 ft 7 in)	145 cm (4 ft 9 in)	143 cm (4 ft 8 in)
Height-adjustable feet	No	Yes	No	Yes
Sand edge and front silicone seal concealed	No	Yes	No	Yes
Hinges	Standard	Premium 125° with soft-close	Standard	Premium 125° with soft-close
Moisture-resistant wood boards in accordance with EN 312	Yes	Yes	Yes	Yes

OPUS® G2 Sump
Sump dimension (L x W x H)	50 x 49,5 x 35 cm (20 x 20 x 13.8 in)	60 x 49,5 x 35 cm (23.6 x 20 x 13.8 in)
Sump water level	approx. 21cm (8 in)	approx. 21cm (8 in)
Sump volume (gross) at a water level of 21cm (8 in)	52 liters (14 gal)	62 liters (16.4 gal)
Refill tank dimensions (L x W x H) and volume (net)	12 x 42 x 50 cm, 22 liters (4.7 x 16.5 x 20 in, 6 gal)	17 x 42 x 50 cm, 22 liters (6.7 x 16.5 x 20 in, 6 gal)
Footprint skimmer chamber (L x W)	28 x 49,5 cm (11.8 x 20 in)	33 x 49,5 cm (13 x 20 in)
Footprint return chamber (L x W)	20 x 22 cm (7.9 x 8.7 in)	25 x 22 cm (8.9 x 8.7 in)

OTHER
Emergency drain	Yes	Yes
Recommended flow return pump	2.000 l/h (525 gph)	2.000 l/h (525 gph)
Adjustable valve on main drain	Yes	Yes
